Types of Stacker Reclaimers and Their Applications-www.nhiglobalequip.com

You use stacker reclaimers to move and sort big materials. These materials can be coal, iron ore, or grains. Stacker reclaimers work in large storage yards. These machines are important for handling bulk materials. They can stack materials into piles. They can also take them back for use or shipping. Different industries need different stacker reclaimers. They pick the type that fits their needs. For example:

Mining companies deal with lots of raw materials.
Cement plants store and get ingredients with them.
Power plants use them to bring in fuel.
Ports use them to load and unload bulk goods.
Steel mills and chemical plants need steady material movement.

Picking the right stacker reclaimer helps you work better. It helps you meet your industry’s needs. The market for these machines is strong. It is worth USD 1,134.28 million in 2024. It may grow to USD 2,567.11 million by 2033.

Key Takeaways

Stacker reclaimers help move and sort big materials. These materials include coal, iron ore, and grains. They work in large storage places.
Picking the right stacker reclaimer makes work faster. It also helps meet needs for mining, power plants, and ports.
Stacker reclaimers need regular care to work well. This means checking hydraulic systems often. It also means changing old parts. Good care helps them last longer and work better.
There are different stacker reclaimers, like bucket wheel and portal types. Each type does special jobs. They fit different ways to handle materials.
You must know your site layout and material type. This helps you pick the best stacker reclaimer. The right choice makes work safer and more productive.

What Are Stacker Reclaimers?

Definition and Function

Stacker reclaimers help you handle lots of materials. They work in big storage yards. You use them to make piles of things like coal and iron ore. They also work with fertilizers and biomass fuels. When you need these materials, stacker reclaimers take them from the piles. This makes your job safer and faster. They move materials quickly. They help you keep your storage neat. Places like ports and power plants use stacker reclaimers every day. These machines help everything run well. Their main jobs are making piles and taking materials out. This saves you time and money. It also helps you waste less.

Tip: Stacker reclaimers can help you work faster and safer. They lower the risks that come with moving things by hand.

Key Components

Stacker reclaimers have many important parts. These parts help the machine work well and last longer. Here are some key things you should know:

Slew dynamic-braking systems help keep people safe. They also stop the machine from wearing out too fast.
Systematized stacking controls help you make neat piles. They also help keep dust down.
Strong braking systems help the machine stop safely. They also mean you do not need to fix it as much.

You should check the hydraulic systems often. Make sure the oil is good and you have spare parts. This helps your machine keep working without long breaks. New parts and controls like PLCs and HMIs make the machine easier to use. They also make it more reliable.

Here is a table that shows how each part helps the machine work better:

Component Type	Contribution to Performance
Safety and Reliability	Fewer repairs, less noise, and a cleaner work area.
Environmental Impact	Efficient handling reduces waste and saves resources.
OEM Quality	High-quality parts with strong support.
Extended Lifecycle	Machines last longer and need fewer service stops.
Improved Reliability	Upgraded systems lower maintenance and make operation smoother.
Performance Upgrades	Modern parts boost performance and cut downtime.

Good design helps you stay safe and work well.
New parts help you finish jobs faster.
Taking care of your machine helps it last longer.
Handling materials well is better for the environment.

Types of Stacker Reclaimers

There are many kinds of stackers and reclaimers. Each one works best for certain jobs and materials. Knowing how they are different helps you pick the right machine.

Bridge Type Stacker Reclaimers

Bridge type stacker reclaimers give a steady flow of material. They help blend materials and keep quality even. These machines have fewer moving parts. This means you spend less time fixing them. You see these machines in mining, steel, cement, and power plants.

The design is simple, so it is easy to fix.
You can mix materials well for better quality.
Your work runs smoothly with fewer problems.

Operational Capacity (tons/hour)	Material Types Handled
2,000 – 4,000	Coal, iron ore pellets, ores, grains
	Used in mining, cement, and power industries

Bridge type stacker reclaimers are good when you want easy care and steady work.

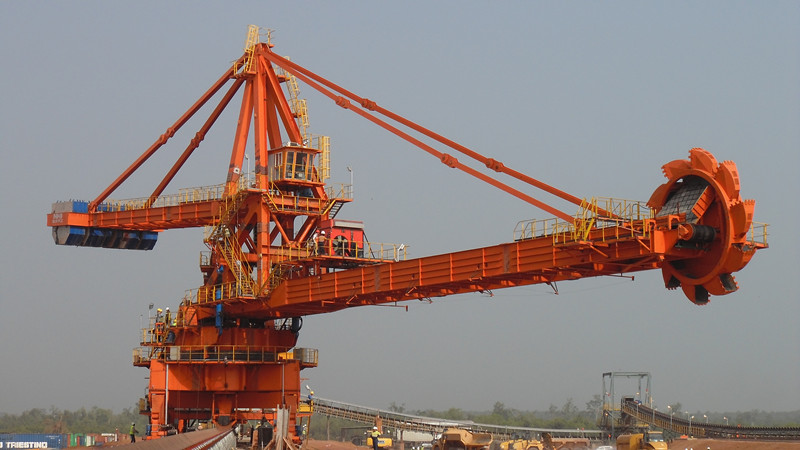

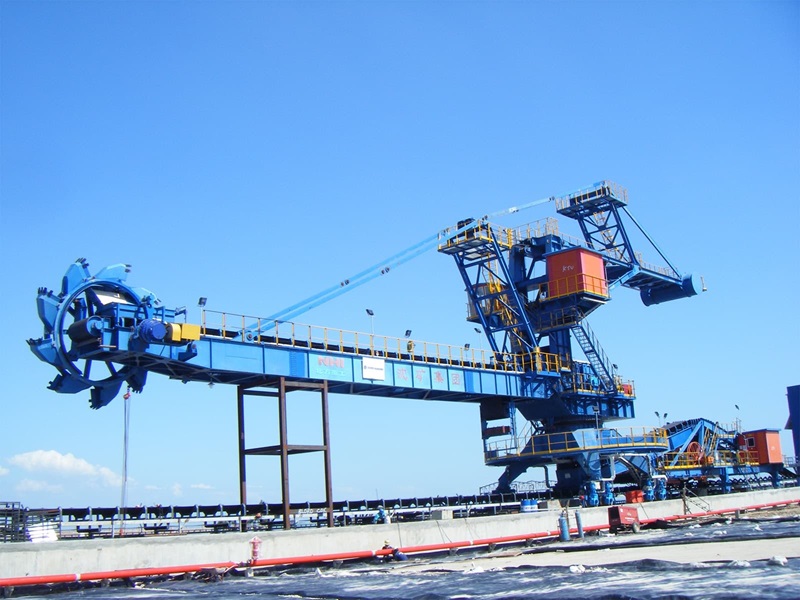

Bucket Wheel Stacker Reclaimers

Bucket wheel stacker reclaimers do two jobs in one machine. They stack and reclaim materials. You use them for big jobs and to save energy. These machines handle many bulk materials and help you save money.

Design Feature	Description
Slip Clutch	Keeps parts safe by limiting force.
Rotary Cam Limits Switch	Stops slewing unless boom is up.
Travel Limit Switch	Stops travel at pile ends and lets you reverse.
Automatic Rail Clamp	Stops drifting in storms, uses hydraulics.
Zero Speed Switch	Checks speed and stops motor if too slow.
Belt Sway Switch	Stops conveyor if belt moves wrong.
Pull Cord Switch	Lets you stop conveyor fast in emergencies.
Hydraulic System for Boom Luffing	Raises and lowers boom, keeps cabin level.
Slewing Arrangement	Uses big bearing and two drive units.
Long Travel Mechanism	Moves stacker along rail track.

You find bucket wheel stacker reclaimers in ports, cement plants, and recycling places. These machines help you work faster and use less energy. You can run them all day to get more done. Automation and remote checks make them more reliable.

A port in Europe moved 20% more cargo after getting new reclaimers. A cement plant in North America worked 12% better with automated reclaimers. A recycling plant in Europe cut processing time by 25% using high-capacity reclaimers.

Portal Type Stacker Reclaimers

Portal type stacker reclaimers cover the whole stockpile. You use them outside and in round stockyards. These machines handle wide piles, up to 75 meters. You can pick one or two booms for your needs.

Feature	Portal Type Stacker Reclaimers	Bridge and Bucket Wheel Types
Structure	Portal covers stockpile, held by undercarriages.	Bridge with bucket wheel.
Width Capability	Up to 75 meters wide.	Usually less wide than portal types.
Boom Configuration	One or two booms side by side.	Single bucket wheel.
Material Transfer	Uses trough or feed table.	Direct reclaiming with bucket wheel.
Application	Outdoor and round stockyards.	Mining and bulk handling.

Advantages	Limitations
High output (up to 6,000 tons per hour)	May not be flexible
Handles many materials	Harder to maintain
Saves space in small areas	Costs more at first
Cuts labor with automation	Needs good technology
Keeps material moving steadily

Portal type stacker reclaimers help you save space and lower labor costs. You get steady material flow, but you may pay more and need more care.

Circular and Longitudinal Stackers

Circular stackers are good for nonstop work and mixing. They fit well when you need small storage and do not want to expand. Longitudinal stackers are best for short-term storage and let you grow your yard later. How you stack and reclaim materials changes how well your work goes.

Stacking Method	Description	Use Case
Cone Shell	Material goes in one cone from one spot.	Use when you do not need mixing.
Chevron	Material moves back and forth over the center.	Good for mixing, but may separate materials.
Windrow	Material drops from many spots on the pile.	Stops separation; reclaim from one part at a time.
Strata	Pile built in layers.	Mixes materials with different traits.
Longitudinal	High storage and easy to expand.	Best for big storage in open yards.
Circular	Small storage, no future growth.	Use when space is tight and you do not plan to expand.

Pick circular stackers for mixing and saving space. Choose longitudinal stackers for more room and future growth.

Scraper and Chain Type Reclaimers

Scraper and chain type reclaimers help you get bulk materials like coal, ore, and minerals. You see them in mining, ports, cement, and power plants. These machines use a scraper chain that moves along a bridge to collect and move materials. You can change the speed to fit your needs.

Feature	Description
Design	Made for bulk material handling and reclaiming from piles.
Functionality	Scraper chain moves along bridge to pick up and move materials.
Operation Speed	Speeds can change for different jobs.
Material Handling Capacity	Handles up to 4,000 tons per hour.
Blending Capability	Moves thin layers for even mixing and less dust.
Control Systems	Computer controls watch and change speed.
Models Available	Single, twin, or double boom for different yard shapes and materials.

You reclaim materials quickly.
You work on a track on top of the pile.
The scraper chain picks up material and drops it onto a belt.

Industry	Application Description
Mining	Handles lots of ore, coal, and minerals.
Ports & Terminals	Loads and unloads bulk materials like grains and minerals.
Cement	Mixes and blends raw materials for better quality.
Power Generation	Manages coal and fuels, helps fuel management, and lowers risks.

Use scraper and chain type reclaimers when you want even mixing and less dust. These machines help you keep your work clean and efficient.

Tip: Match the stacker reclaimer type to your material and yard layout. This helps you get the best results and reliability.

Applications of Stacker Reclaimers

Mining and Minerals

Stacker reclaimers work hard in mining and minerals. They help move, store, and mix things like coal and iron ore. You can make big piles and take material when needed. These machines let you handle many materials. This gives you more choices for where to store them. You can use them for bench-type or block jobs. This makes your work faster and easier.

Here is a table that shows how stacker reclaimers help in mining and minerals:

Application Type	Description
Material Handling	You use stackers and reverse belts to move bulk material.
Storage	You make stockpiles by stacking layers of material.
Blending Processes	You mix or pre-mix materials with special stacking and reclaiming.
Reclamation Methods	You get materials back in bench-type or block jobs for faster, even work.
Flexibility in Materials	You handle many materials, so you have more storage options, especially at ports.

Using stacker reclaimers in mining helps you stay organized and spend less. You can stack and reclaim at the same time, which saves time. There are many ways to build piles, like cone, chevron, or windrow. These choices help you pick the best way for your job. You get bulk materials and send them for processing. This keeps your work smooth, fast, and correct.

Tip: Pick a stacker reclaimer that fits your material and yard. This helps you get the best results.

Power Generation

Stacker reclaimers help power plants handle coal and biomass. They help you get, pile, and mix fuel. You can stack wood fast and reclaim it quickly. Some places stack wood at 270 tons per hour. They reclaim at 115 tons per hour. Each site may use up to 600,000 metric tons of biomass each year.

These machines help you keep fuel coming all the time. You can mix different coal grades for better burning. You also save space in your yard, which is important for steady power. Stacker reclaimers help control dust and keep things clean.

Here is a table that shows safety and environmental performance in power plants:

Aspect	Description
Dust Suppression Technologies	You use water sprays, fog cannons, and filters to lower dust and meet rules.
Material Durability	You use weathering steel to make machines last longer and avoid bad coatings.
Smart Management Systems	IoT sensors watch machine health, so you fix problems early. Cloud systems help you plan repairs and stop long breaks.
Energy Efficiency	You use energy-saving drives and special brakes to use less power and lower pollution.
Lifecycle Assessment	You check the whole life of the machine to lower harm and follow new rules.

You need to pick the right stacker reclaimer for your job. This helps your plant stay safe, clean, and working well.

Ports and Terminals

Stacker reclaimers help ports and terminals move bulk cargo like grains, coal, and minerals. They help move products from storage to loading spots for ships, barges, and trains. You can load and unload ships fast, which saves time and helps you do more.

You move bulk goods from storage yards to loading spots.
You match services between water and land transport.
You handle big ships with more reclaimers, which cuts waiting time.
You can see a 10-15% boost in how much you get done.

Stacker reclaimers help you manage bulk cargo and keep your port running well. You need to pick the right type for your job, so you get the best results.

Note: If you want to move cargo faster, use a strong stacker reclaimer that fits your yard and material.

Steel, Cement, and Other Industries

Stacker reclaimers are used in steel, cement, and other heavy industries. They help you handle raw materials and keep production steady. You use stacking ways like Chevron, Windrow, and Cone Shell. The Chevron way moves the stacker back and forth, which can separate materials. Prehomogenisation is important in cement because raw materials change a lot.

Here is a table that shows how stacker reclaimers help you work better in these industries:

Aspect	Impact on Efficiency
Material Handling	You get steady material flow and less waste.
Automation and Control	You use smart controls to make work safer and faster.
Environmental Sustainability	You lower waste and protect materials from weather.
Space Utilization	You use storage areas better with good design.
Versatility	You handle many raw materials and work in different jobs.

You need to pick the right stacker reclaimer for your job. This helps you get the most from your machine and keep your work fast and correct.

Tip: Always think about your material, yard, and production needs before you choose a stacker reclaimer.

Choosing the Right Stacker or Reclaimer

Selection Factors

When you pick a stacker or reclaimer, you need to think about many things. First, look at your site and see how much space you have. Measure the length, width, and height of the area. Make sure there is enough room for the machine to move. Next, check the material you want to handle. Think about its size, shape, density, moisture, and stickiness. Some materials are rough or dusty and need special machines.

You also need to know if your materials have chemicals. If they do, choose machines that do not rust easily. Decide if you want to store things outside or under a roof. This choice helps protect your materials from rain and sun. Plan for the future too. If you want to make your store bigger later, pick a machine that can grow with you.

Here are some important things to think about:

Site layout and conditions
Space for the machine
Material traits and chemical features
Mixing needs
Mill feed system
Open or roofed storage
Plans for future upgrades
Dust and noise in the area

Tip: Always check your site before you buy a machine. This helps you avoid problems later.

Matching Type to Application

You need to pick a stacker reclaimer that fits your job. If you need to move lots of material, choose a machine with high capacity. If you want to mix materials well, pick one that blends them evenly. Your site size will help you decide. Some machines need lots of space, but others fit in small areas.

Use this table to help you match stacker reclaimer types to your needs:

Application Need	Best Type to Choose	Why It Works Well
High capacity	Bucket wheel or portal type	Moves lots of material quickly
Good blending	Bridge or scraper type	Mixes materials well
Limited space	Circular stacker	Fits in small yards
Easy expansion	Longitudinal stacker	Lets you grow your storage
Dust control	Enclosed or roofed models	Keeps dust and noise down

Always match your machine to your job and site. This helps you work safely and get things done faster.

Note: Talk with your team and suppliers about your site and needs. This helps you pick the best machine for your work.

You can pick from many stacker reclaimers. Each kind works best for certain jobs and materials. The table below shows the main types and what they do:

Type of Reclaimer	Description
Bucket Wheel Reclaimers	Use bucket wheels to move material from piles.
Scraper Reclaimers	Use chains and scrapers to collect bulk material.
Blending Bed Reclaimers	Blend materials while reclaiming with a conveyor system.
Cantilever Chain Reclaimers	Use long booms and trusses for loose material.

You need to match the machine to your site and material. Check the machine’s parts before you choose. Look at the structure, conveyor systems, drives, controls, and safety features. Follow new technology and market news from suppliers. This helps you keep your facility safe and working well. You will be ready for changes in the future.
