NHI belt sintering machine is engineered for high output and automation, offering excellent environmental performance and energy efficiency. With a reliable structure, advanced design, and low operational cost, it delivers consistent results in large-scale sintering applications.
⚙️ Description of Belt Sintering Machine

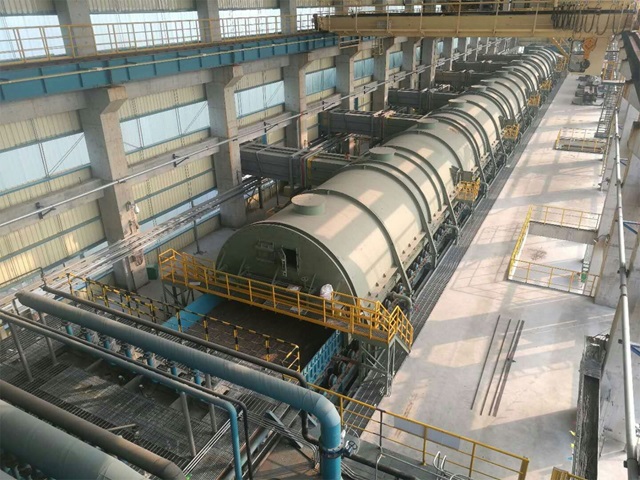

The belt sintering machine is the core equipment used in the suction-type sintering process of large-scale ferrous metallurgy sintering plants. It is central equipment for updraft sintering and can sinter fine ore power and rich ore power of different ingredients and graininess as well as partly eliminating impurity like sulfur, phosphor and arsenic.
NHI is China's first design and manufacture of sintering machine professional factory, is the belt sintering machine industry standard drafting unit. On the basis of the introduction of technology digestion and absorption, NHI has continuously cultivated the independent research and development ability of the enterprise, and formed a batch of sintering machine series products with independent intellectual property rights, advanced technology and reliable performance, and the maximum width of the truck is 5.5m (6m). The 660m2 sintering machine produced by the NHI is the largest specification in China.
The pallet car width design covers 3m to 5.5m series, including Shougang, Baosteel, Wuhan Iron and Steel, Anshan Iron and Steel, Shagang, Jianlong, Baotou Steel, Baosteel, Nippon Steel Yonggang and other iron and steel enterprises provide sintering equipment, and the products are exported to South Korea, India, Brazil and other countries.
⚙️ Technical Features of Belt Sintering Machine
Specification: SD-180~SD-660
Capacity(t/h): 490~1550
⚙️ Features of Belt Sintering Machine
Large production capacity
High level of automation
Enhanced environmental protection performance
Reliable and efficient operation
Suitable for large-scale sintering applications
⚙️ Main Experience Projects
Experience in China: Shougang, Baotou Steel and Angang Steel projects (186 sets)
Experience Overseas: India, Brazil, Iran, etc (5 sets)
⚙️ Technical Parameters
|
Specification |
SD-180 |
SD-265 |
SD-360 |
SD-430 |
SD-500 |
SD-600 |
SD-660 |
|
Effective sintering area（m2） |
180m2 |
265m2 |
360m2 |
430m2 |
500m2 |
605m2 |
660m2 |
|
Capacity（t/h） |
490 |
800 |
1000 |
1100 |
1220 |
1430 |
1550 |
|
Effective sintering length（m） |
60 |
75.75 |
90 |
96 |
100 |
110 |
120 |
|
Trolley WxL（m） |
3×1 |
3.5×1.5 |
4×1.5 |
4.5×1.5 |
5.0×1.5 |
5.5×1.5 |
5.5×1.5 |
⚙️After-sales Service 400-600-4666 (24 Hour Online)
NHI's after-sales service center is equipped with a team of over 200 experienced engineers, who provide year-round services for various projects in China and overseas. They offer comprehensive on-site support, including son-site parts inspection, installation guidance, operation training, equipment commissioning, and performance testing for final acceptance. The team promptly provides technical support for any issues that arise during equipment operation and system, ensuring full-process service for users.
